Soundcard Interface for Direwolf

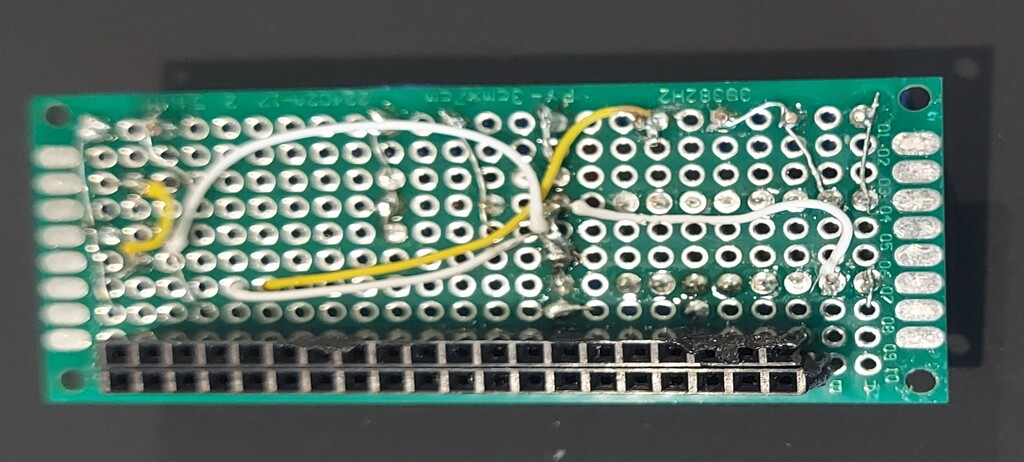

This interface is built on perfboard and meant to be mounted onto a Raspberry Pi running direwolf. Connections to the soundcard and radio are through breakout cables so that the interface can be configured for different radios and soundcards.
Screw Terminal Connections

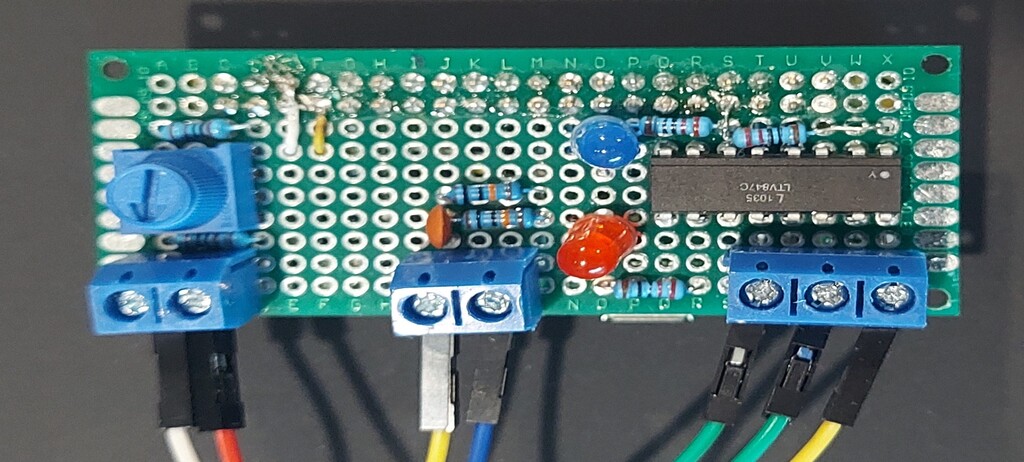

Orient the board so that the screw terminals are on top as in the picture, terminal #1 is on left and terminal #7 is on the right.
- PTT (from radio)
- Gnd (from radio)
- Gnd (from soundcard)
- Spkr+ (from radio)
- Mic (to sound card)
- Mic+ (to radio)
- Left channel (from sound card)
Breakout Cables

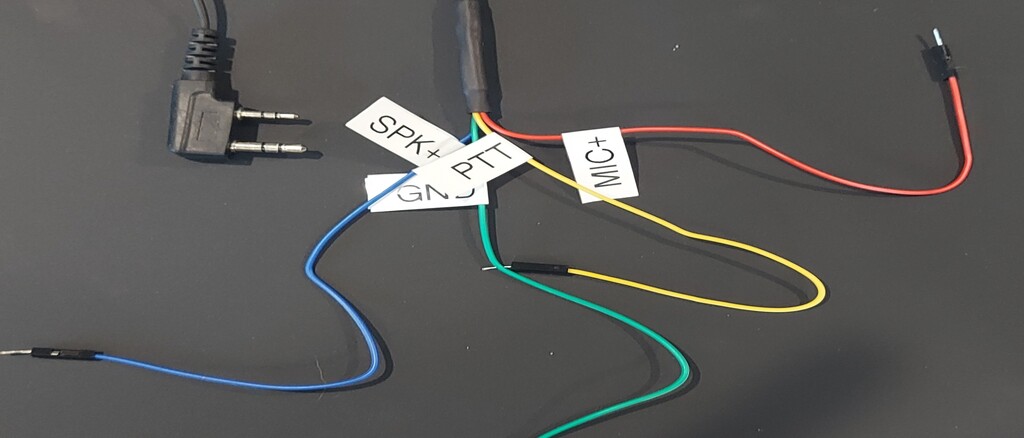

Radio Breakout Cable (Kenwood, Baofeng, etc)
3.5mm TRS Connector
- Tip
- Ring, Mic+
- Shield, PTT
2.5mm TRS Connector
- Tip, Speaker+
- Ring
- Shield, Ground
Soundcard Breakout Cable
3.5mm TRRS Connector
- Tip, Left channel
- Ring, Right channel
- Ring - Ground
- Shield - Mic
Direwolf Configuration
- PTT is on GPIO 13
- DCD is on GPIO 4

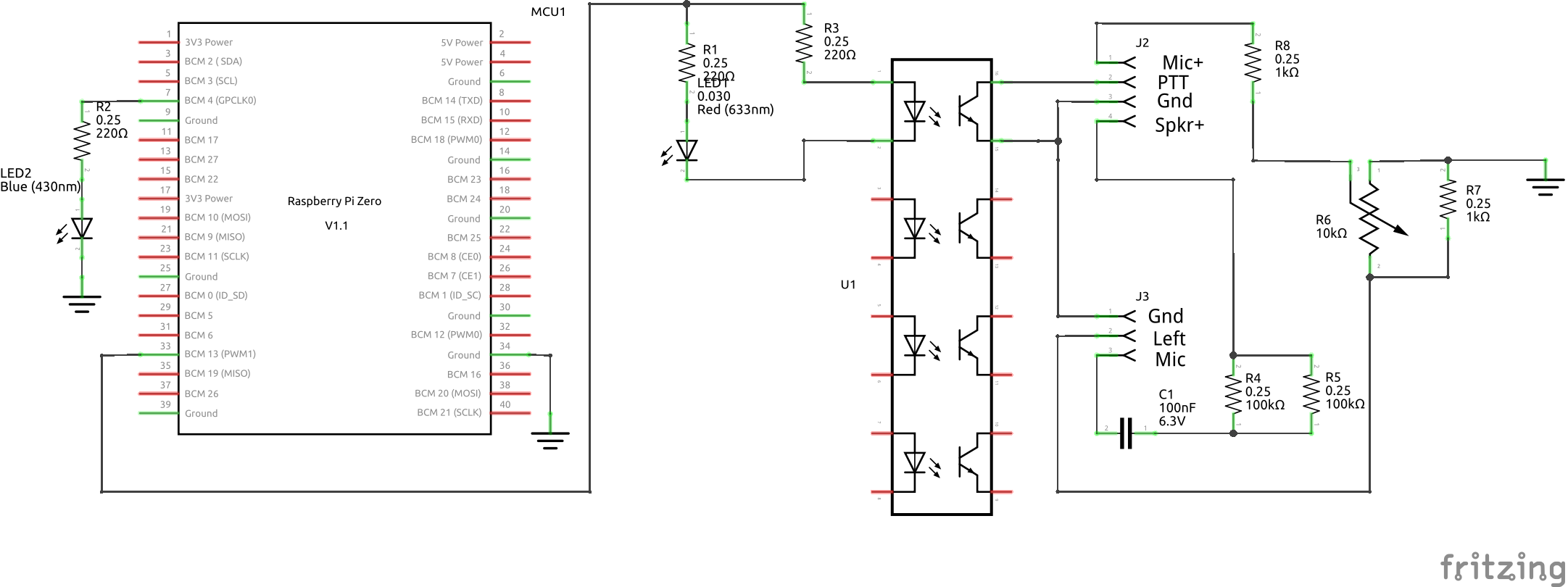

Schematics
